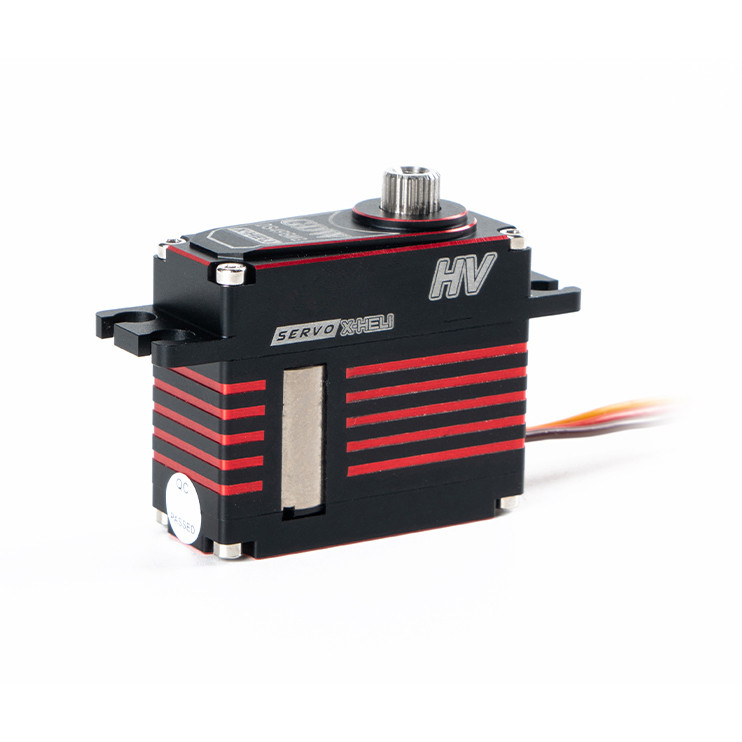

DS498MG 22KG Torque Steel Gear – Aircraft Fixed Wing – Turbojet Aircraft Medium-Sized Digital Servo

Add to wishlist
Compare
分类：
描述

描述

Model: DS498MG

Minimum order: 20

Wheelbase:

Weight: 42g±5

Function: 15Kg.cm/0.11sec/60°@6.0V， 19Kg.cm/0.09sec/60°@7.4V， 22Kg.cm/0.08sec/60°@8.4V ， 35.5*15*31.25mm

Note: The new S3-Generation Gear Set is incompatible with the old-generation gear set.

The new S3-Generation has an upgraded internal structure, with enhanced gear set hardness. The gear set is more resistant to wear and tear, featuring optimized performance, more accurate servo centering, and higher precision.

The default angle of the model remote controller is approximately 60 degrees.

  • Pulse width: 1000-2000us; Controllable angle: 90 degrees.
  • Controllable angle: 120 degrees (commonly used for: RC model cars, RC aircraft models, RC boat models); Pulse width: 900-2100us.

Core Positioning

Designed exclusively for medium-sized jet-powered fixed-wing RC aircraft, addressing the need for precise control under high-speed flight and control surface loads.

Key Specifications

  • Maximum Torque: 22KG・cm (at 8.4V)
  • Gear Material: Full-metal steel gears
  • Response Speed: 0.08s/60° (at 8.4V)
  • Operating Voltage: 4.8V-8.4V
  • Compatible Aircraft Models: Jet-powered fixed-wing aircraft

Core Advantages

  1. 22KG High Torque: Stabilizes control surfaces such as flaps and ailerons, withstanding high-speed airflow pressure.
  2. Steel Gear Transmission: Wear-resistant and impact-resistant, reducing maintenance frequency.
  3. Digital Drive: Responds quickly to commands, minimizing control delay during high-speed flight.

Application Scenarios

Compatible with simulated jet models such as the “Typhoon” and “F-16”; suitable for route flying and basic aerobatics. Supports single servo operation or multi-servo coordinated drive for core control surfaces.
