描述

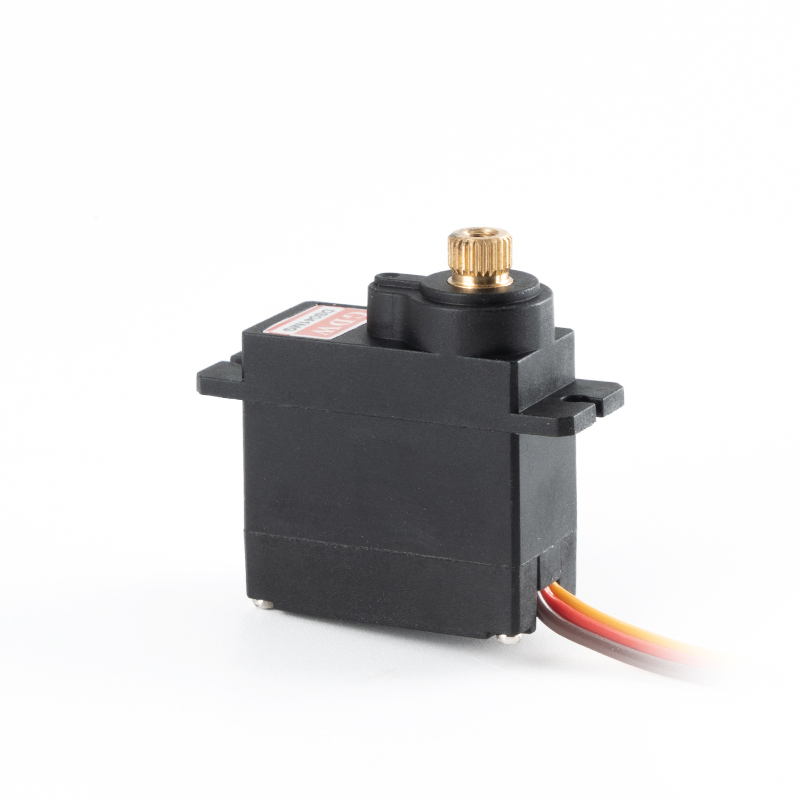

Model: DS041MG
Minimum order: 20
Wheelbase:
Weight: 14g±5
Function: 3.5Kg.cm/0.14sec/60°@6.0V， 4.0Kg.cm/0.12sec/60°@7.4V， 5.0Kg.cm/0.10sec/60°@8.4V ， 23.5*11.6*26.5mm
The default angle of the model remote control is approximately 60 degrees, with a pulse width ranging from 1000 to 2000 microseconds. The controllable angle is 90 degrees.
Controllable angle: 120 degrees. Commonly used in: RC model cars, RC model aircraft, RC model boats. Pulse width: 900 – 2100 microseconds.
Controllable angle: 180 degrees. Applicable to: robot joints, industrial development, pulse width: 500 – 2500 microseconds.
Controllable angle: 270 degrees. Applicable to: robot joints, industrial development, pulse width: 500 – 2500 microseconds.
Controllable angle: 290 degrees. Applicable to: robot joints, industrial development, pulse width: 500 – 2500 microseconds.
Support technical exchanges, 2D drawings, 3D drawings.
Plastic casing, metal gears, hollow cup motor. Can be used for: beginner helicopter, small fixed-wing aircraft, robot development, RC model car, etc.
