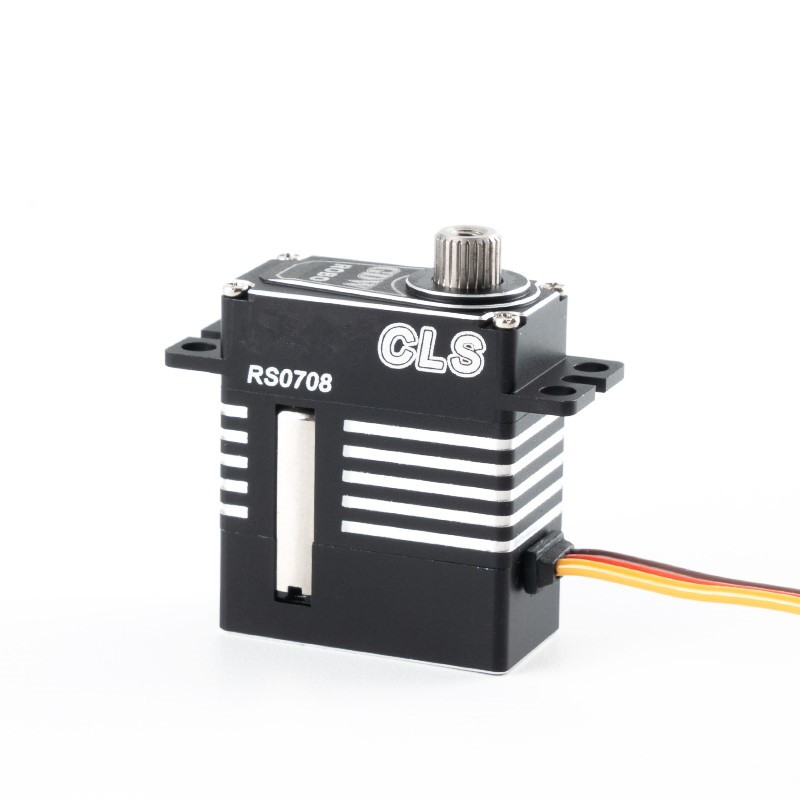

Model: RS0708
Minimum order: 20
Wheelbase:
Weight: 20g±5
Function: 6Kg.cm/0.10sec/60°@6.0V， 6.8Kg.cm/0.08sec/60°@7.4V， 7.5Kg.cm/0.07sec/60°@8.4V ， 23*12*27.5mm
The default angle of the model remote control is approximately 60 degrees.
Pulse width: 1000 – 2000 microseconds. Controllable angle: 90°
Controlled angle: 120 degrees. Commonly used for: RC car models, RC model aircraft, RC model boats. Pulse width: 900 – 2100 microseconds.
Controllable angle: 180 degrees. Applicable to: robot joints, industrial development, pulse width: 500 – 2500 microseconds.
Controllable angle: 270 degrees. Applicable to: robot joints, industrial development, pulse width: 500 – 2500 microseconds.
Controllable angle: 350 degrees. Uses magnetic induction encoder. Suitable for: robot joints, heads, industrial development. Pulse width: 500 – 2500 microseconds.
Uncontrollable 360-degree rotation, capable of continuous rotation in both forward and reverse directions. Commonly used in: wire twisting, industrial development, pulse width 500-2500us.
Among them, the period of 1400-1600us represents the stop state. The speed and torque increase (become faster) as the time approaches 500us or 2500us.
Support technical exchanges, 2D drawings, 3D drawings.
Metal casing, steel gears, coreless motor.
Can be used for: robots, robotic arms, RC model cars, RC model aircraft, etc.
